Quick Details

  • Place of Origin: China (Mainland)
  • Brand Name: OND
  • Model Number: NEMA24
  • Phase: 2
  • Type: Other
  • Certification: ISO
  • Step Angle(degrees): 1.8
  • Holding Torque: 0.39N.m-2.8N.m
  • Current / Phase: 4.2A
  • Resistance: 0.45±10%Ω
  • Inductance: 1.8±20%mH
  • Holding torque: 3.0N.m
  • Motor length: 88mm
  • Model: 60HSE3N-D25
  • Total length: 109mm
  • Suitable driver: HSS60
  • Encoder resolution: 1000ppr
  • Weight: 1.55kg
  • Name: Nema 24 closed loop stepper motor and driver

Packaging & Delivery

Packaging Details 10pcs/inner foam box 60pcs/standard export carton,or as your requirements
Delivery Time 3-5 days after your payment,depend on order quantity

Nema 24 Closed loop stepper motor and driver



Product Description

Closed loop stepper motor and driver size:

Nema 17 closed loop stepper motor and driver

Nema 23 closed loop stepper motor and driver

Nema 24 closed loop stepper motor and driver

nema 34 closed loop stepper motor and driver

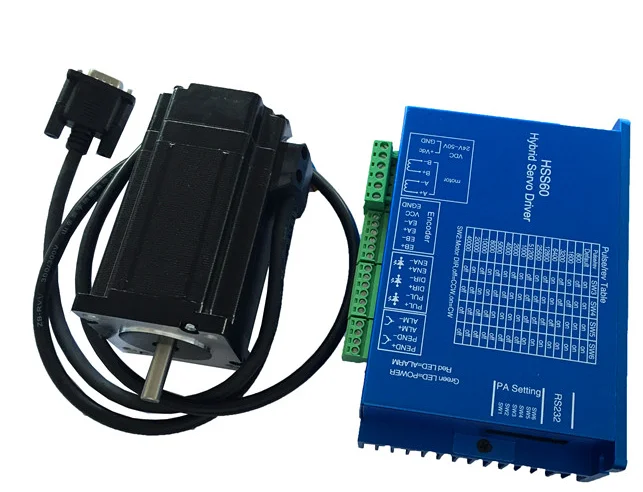

Nema 24 closed loop stepper motor and driver:

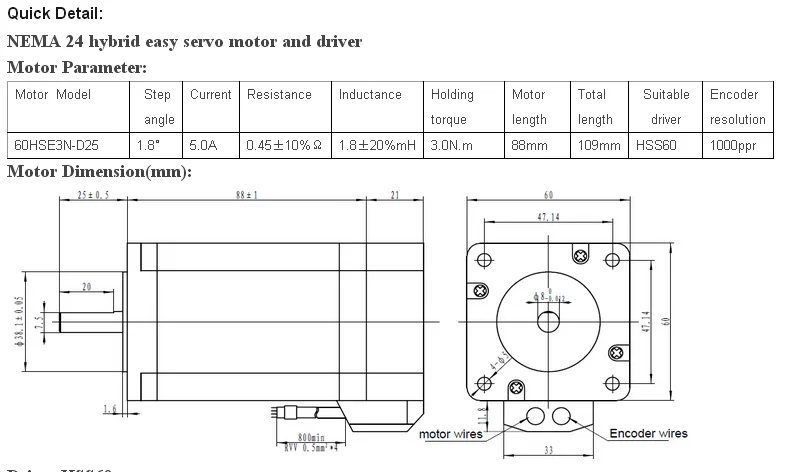

Motor Parameter:
Driver HSS60
Features:
1. Position error correction and never lose steps
2. Quick response and perfect acceleration, High torque at high speed
3. Automatic current adjustment based on load, lower temperature rising
4. Over-current, over-voltage and position ultra difference protection function
5. Pulses response frequency can reach 200KHZ
6. 16 kinds microsteps choice, highest 51200microsteps/rev.
7. Drive nema 24 series 3N.m closed loop stepper motor
8. Voltage range: DC24V~50V

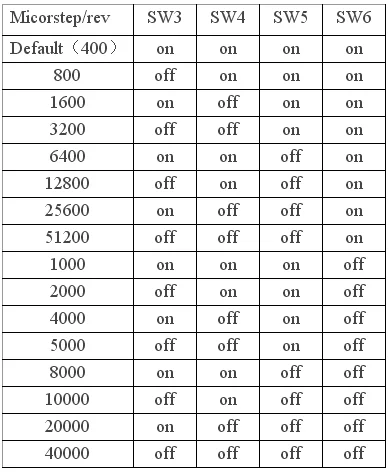

Microstep selection:

Driver Dimension(mm):

Diagram:

Company Information

We have our factory and the traffic is convenient.

We have the advanced technology ,personnel and expertise in serving ,so we are able to produce according to the customers different needs .

We are look forward to receiving your enquires soon .



Factory show:













Packaging

Wooden case ,Carton or as your requirements.









Shipping Method
